Master Link Assembly
A key component of multi-legged wire rope bridle slings, alloy chain slings, web sling bridles, and stingers, master links can comprise stand-alone rigging accessories or come as a component part of a larger assembly, or bridle.

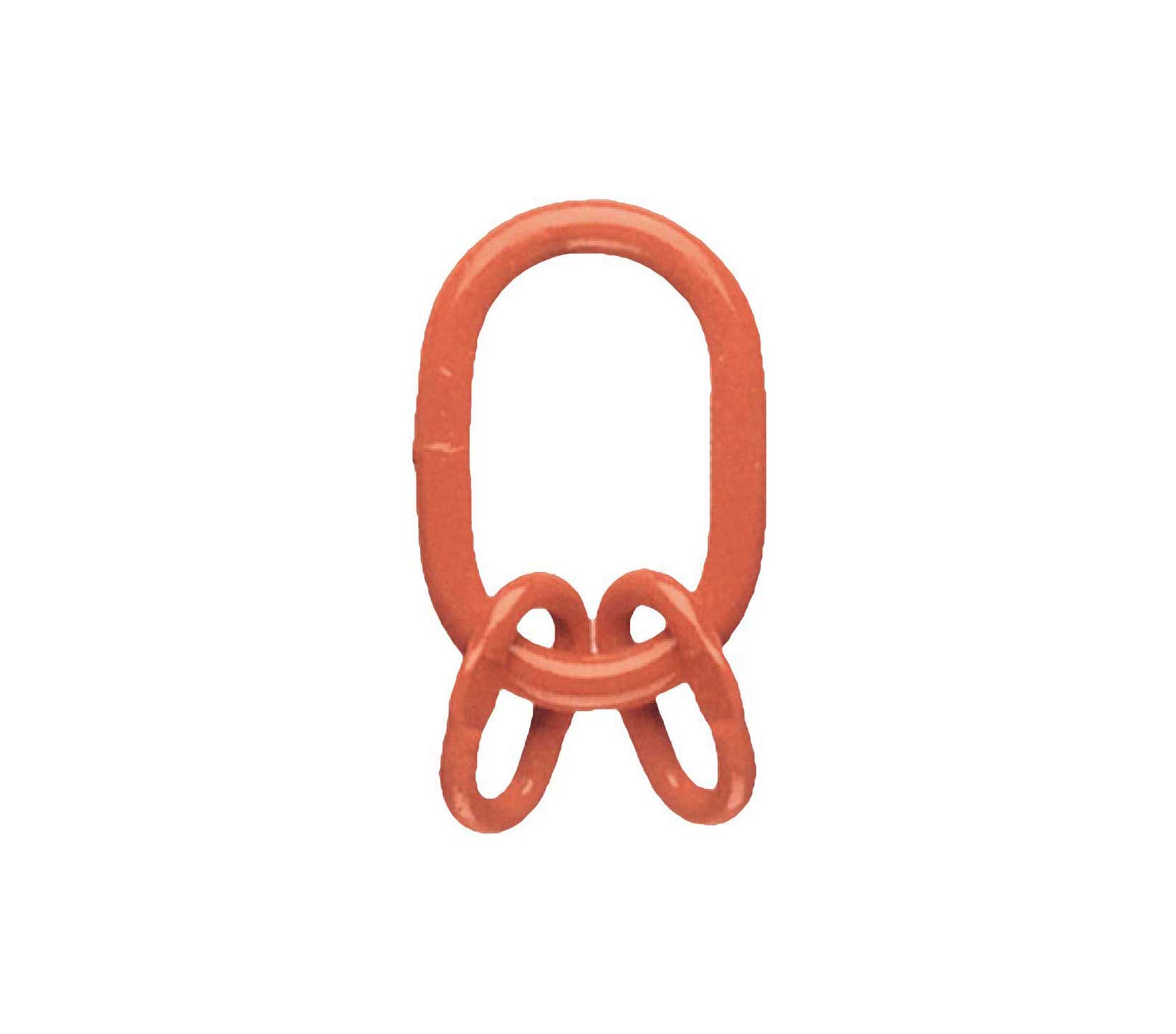

A grouping of a master link and additional sub links comprises a master link assembly, which can help the end user more efficiently spread out the rigging and avoid bunching.
Different ring shapes allow the rigger to organize rigging more effectively based on the application and, depending on use, rings can come in oval, round ring, or pear shaped.
SPECS
CSC #8
CSC #10
CSC #11
CSC #23
PACKAGED UNIT WEIGHT
40
90
100
130
WINCH CAPACITY (LBS)
3,000
10,000
10,000
10,000
DRUM WIDTH
5.35"
5.00'
8.74"
21.00'
DRUM FLANGE SIZE (OUTER)
6"
9.92"
9.92"
9.92"
BOLT HOLE DIMENSIONS (0.5" BOLT)
4.57" × 5.69"
7.01 × 8.44"
11.04 × 8.44"
23 × 8.44"
OVERALL DIMENSIONS (Wx LX H)
7.00" × 13.20" × 7.50"
10.70" × 15.50" × 12.15"
10.70" × 19.20" × 12.15"
10.70" × 31.35" × 12.15"
Cable Capacity
CSC #8
CSC #10
CSC #11
CSC #23
1/4"
150 FT.
-
-
-
5/16"
150 FT.
-
-
-
3/8"
65 FT.
130 FT.
260 FT.
560 FT.
1/2"
-
95 FT.
185 FT.
320 FT.
5/8"
-
60 FT.
120 FT.
280 FT.
3/4"
-
40 FT.
75 FT.
185 FT.
Buy Master Link Assemblies
No items found.
For more information on master link assemblies
call or email us today
